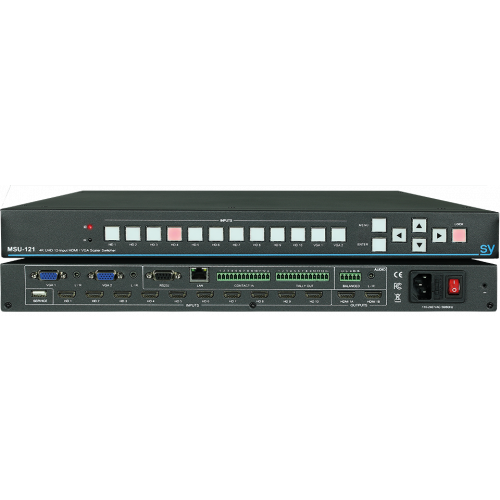

The SY-MSU-121 is a 12 input multi-format presentation switcher with two scalable HDMI outputs.
This switcher has 10 HDMI inputs capable of accepting a wide range of resolutions up to 4K UHD.
2 VGA + audio input ports for support of legacy devices.

Any input can be selected to output to the dual HDMI outputs (mirrored).
Each input can be scaled to output at a max resolution of up to 1080P ensuring the connected device receives an optimal resolution regardless of the input.
Also the Audio can be de-embedded on balanced or 3.5mm TRS jack.  This can then be sent to an amplifier to provide audio to the room's speakers.
The MSU-121 also has Picture management (colour, brightness, contrast), Noise reduction, HDCP management and EDID Management.
The VGA inputs have several additional adjustments from size, position and phase.
All of this can be controlled from either the front panel, RS232, LAN, IR, contact closure or by using the PC App.
Front panel buttons control the ‘On Screen Display’ Menu which is shown on any connected display device.

This unit is a cost effective 4K Presentation Switcher and can accommodate a variety of installations.
A smart choice for education and corporate environments.

Features

• Inputs: 10 HDMI up to 4K UHD, 2 VGA + Audio up to 1920x1200
• Outputs: Two mirrored HDMI outputs, Scalable up to 1080P
• De-embedded audio
• HDMI/HDCP 1.4 Compliant
• EDID Management
• OSD menu for easy and flexible configuration
• Control via TC/IP RS232, IR, Contact closure, PC App
